The Cohesion3D Mini is a 100x65mm Rectangular PCB with M4 mounting holes 87mm in X and 54mm in Y apart.

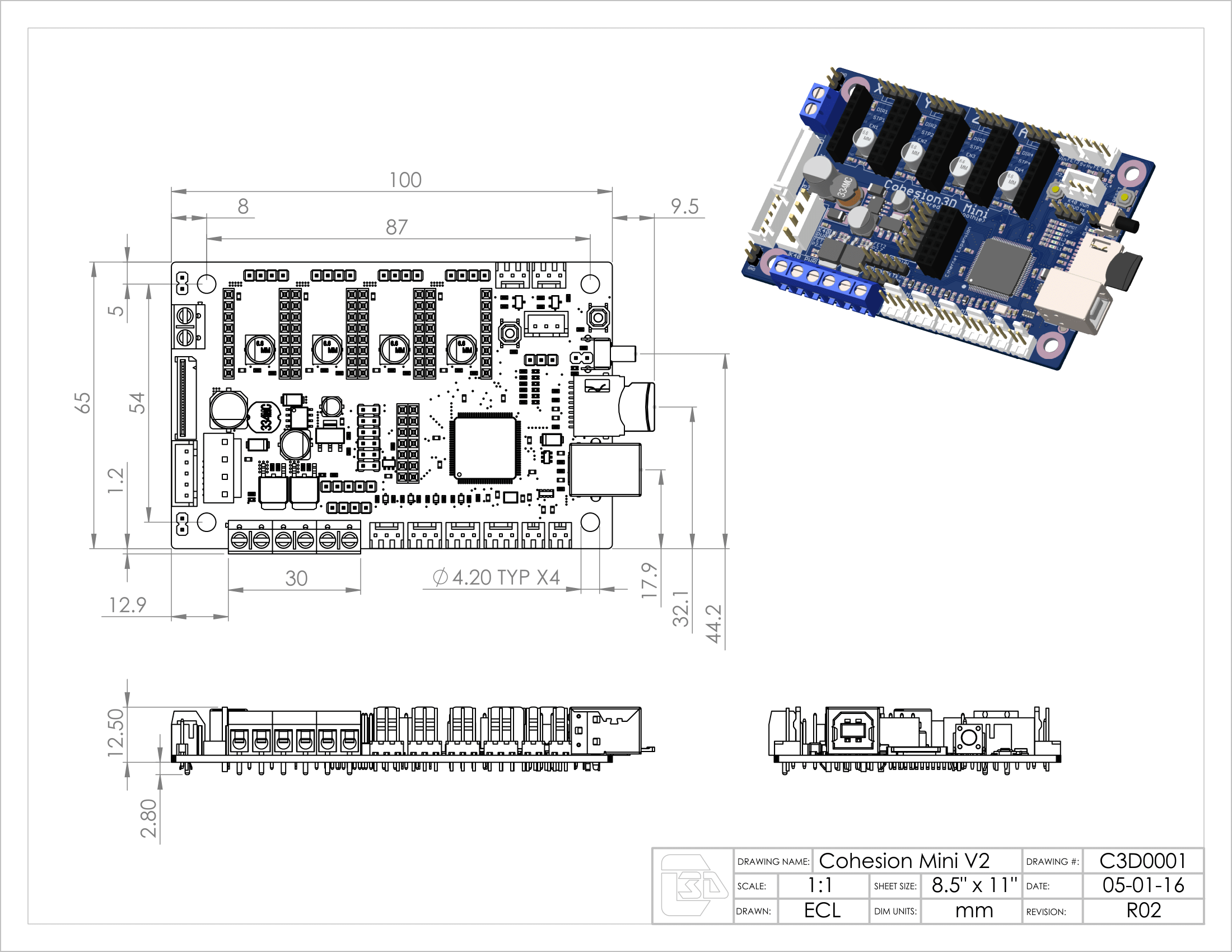

Dimensional Print (click to enlarge):



A PDF version of this print is attached below.


A huge thanks to Eric Lien for creating the CAD Models, Renders, and Mechanical drawings for the Cohesion3D Control Boards.
