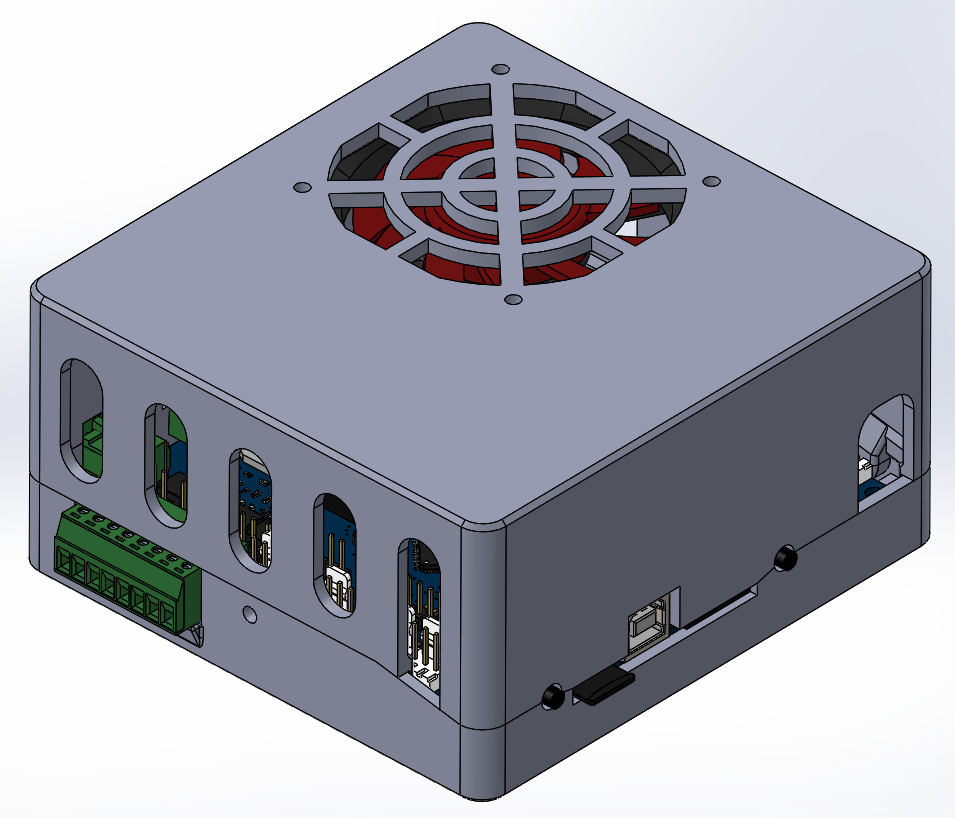

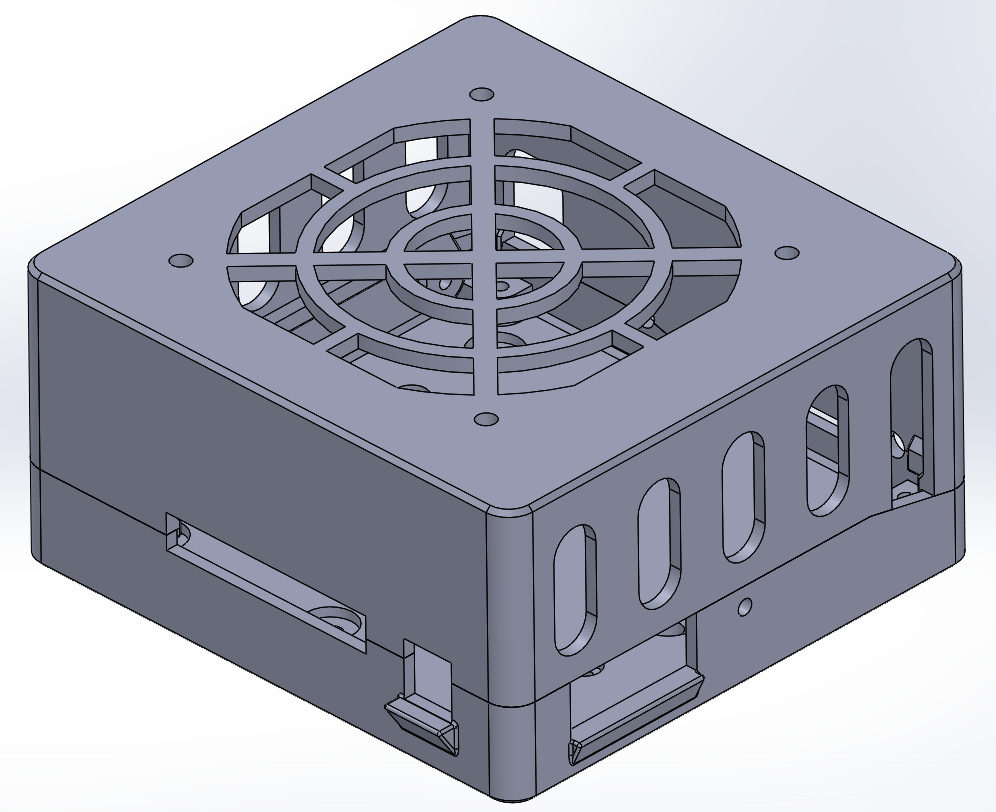

Picture of Enclosure:

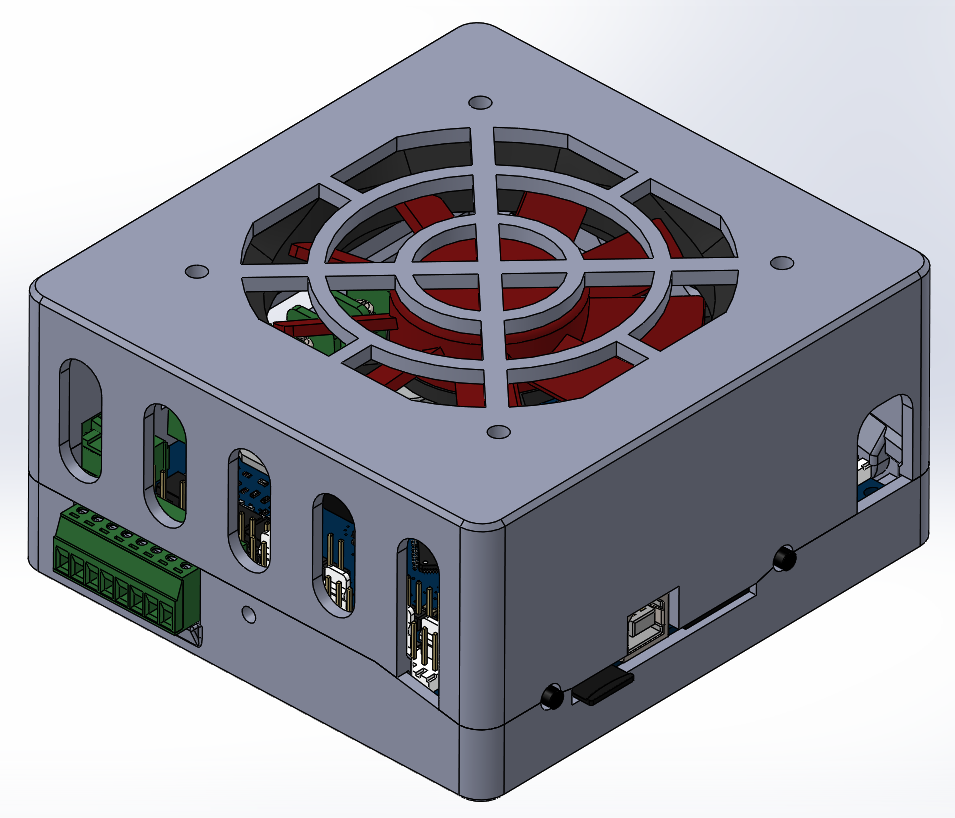

Picture of Enclosure with ReMix and Fan installed:



The enclosure goes together with 3 * M3x6 screws in the sides.  4 * M3 screws 6 - 10mmm long can be used to secure the remix via the 4 corner mounting holes to the case bottom.


There is a grid of holes on the bottom to mount to various plates and extrusion profiles.


STL files for the top and bottom below.


A huge thanks to Eric Lien for designing the ReMix Enclosures!
